Metrix Controllers

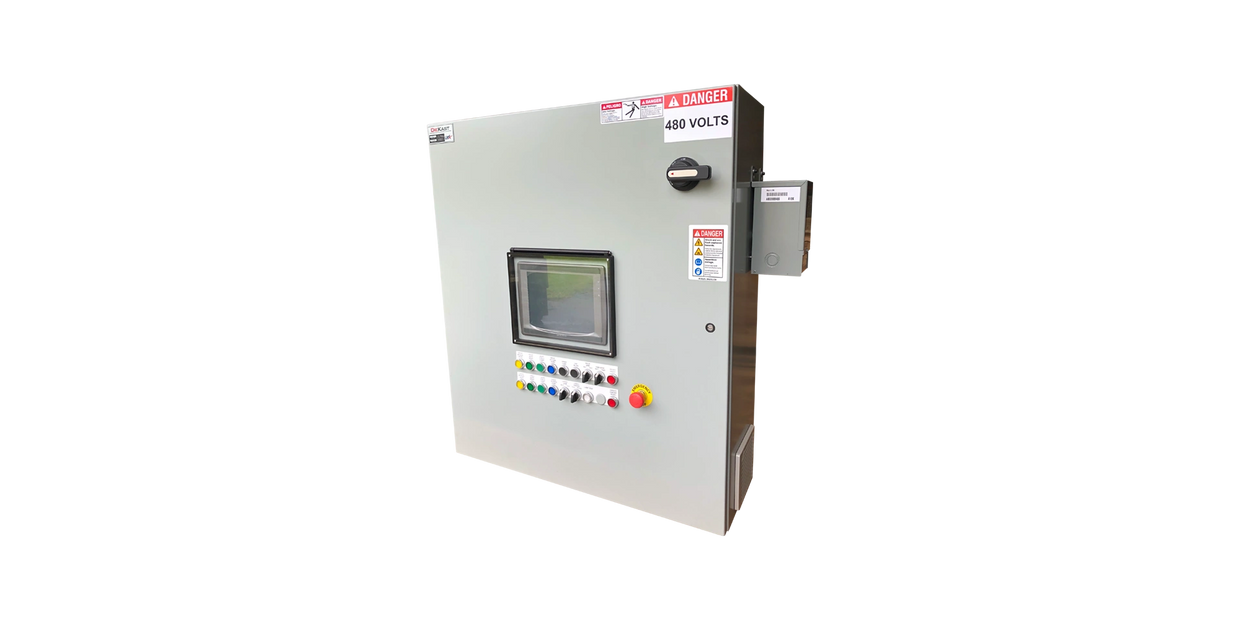

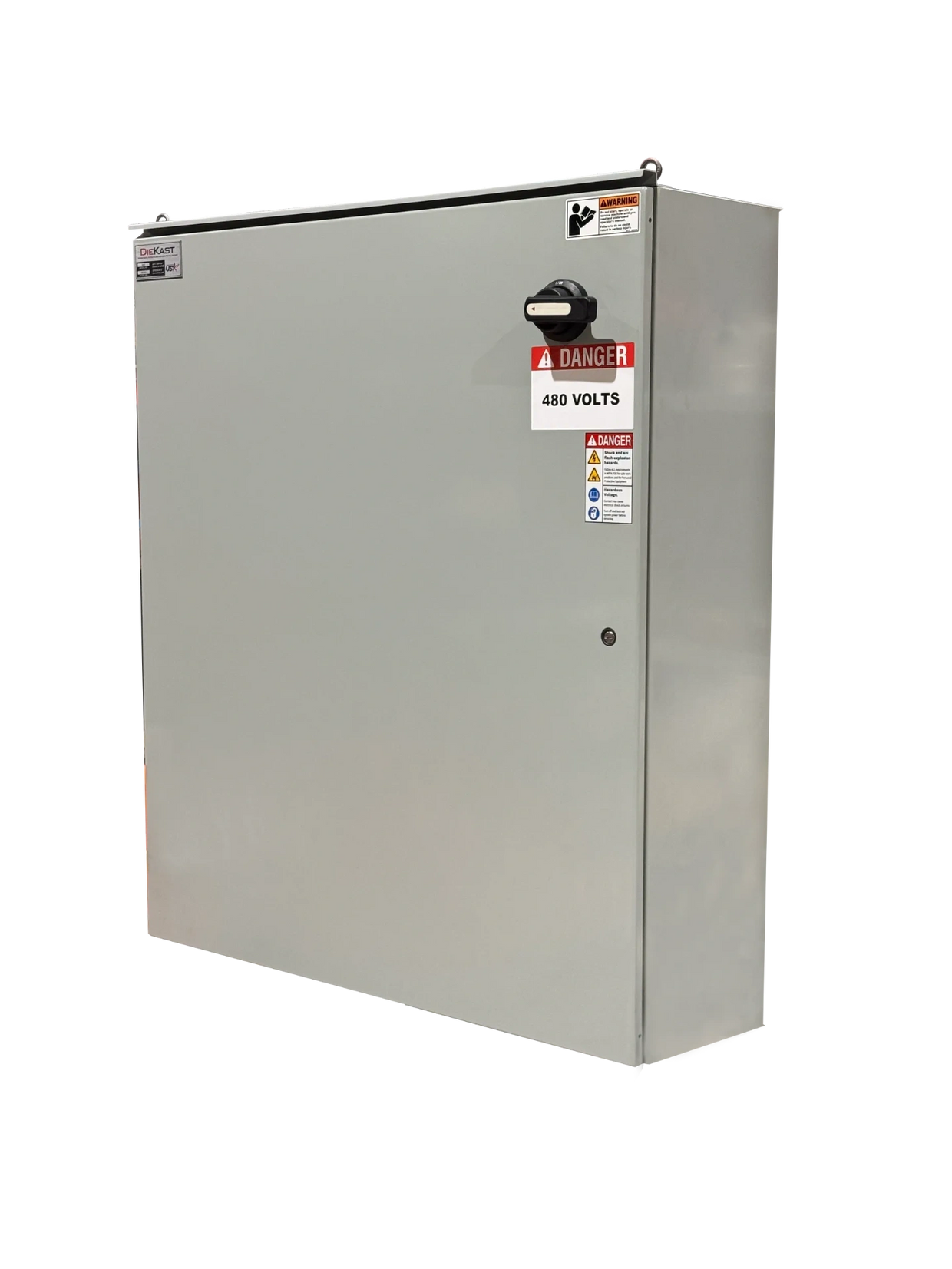

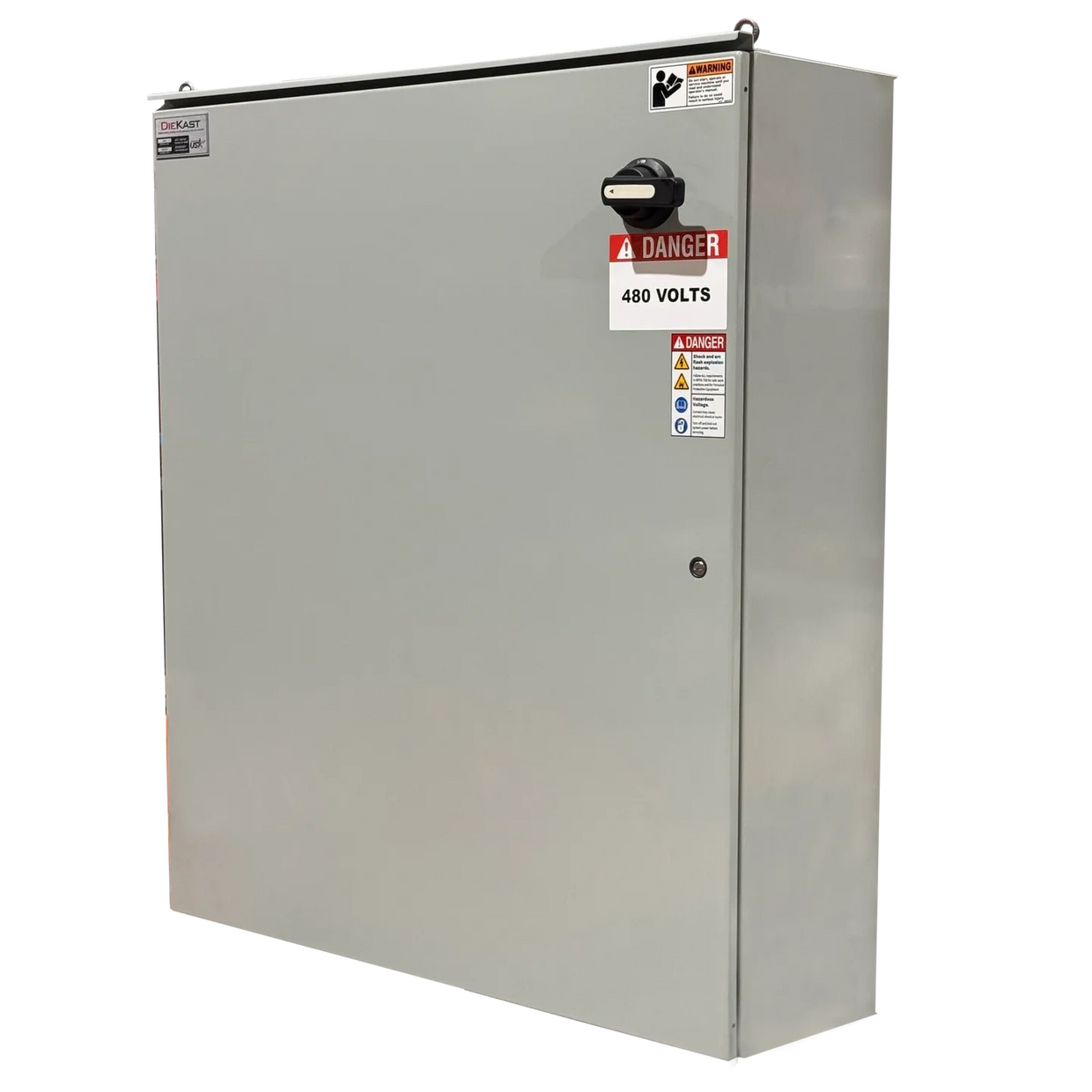

The MetriX series controllers are our most advanced, user-friendly ladle and sprayer controls.   The MetriX series operator interface features a new larger, higher resolution touchscreen with a more consistent and intuitive navigation system. The MetriX series controllers are packed with more features and troubleshooting information,  all while improving on the operator’s and programmer’s ease-of-use.

The MetriX series controllers utilize the performance and reliability of Allen Bradley’s CompactLogix family of PLC processors, Kinetix servo drives and energy efficient MPL series servo motors.

MetriX Series of controllers are compatible with ladles and sprayers from Rimrock, Advance, UBE, and others.   With single or combination cabinets available in any combination including dual manufactures.

 DieKast offers multiple control options for ladles, sprayers, and die casting machines.  From basic functionality to our most advanced systems with data collection, RFID login security, wireless connectivity,  and Cloud based monitoring, we have a solution for every budget.

Browse controls

STANDARD SYSTEM FEATURES

  • Allen Bradley CompactLogix L18 processor and I/O Modules

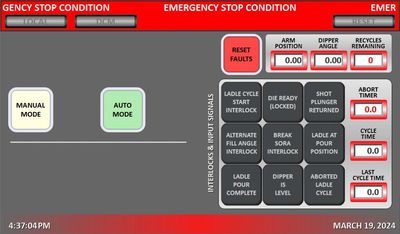

  • 10.1" Color touch screen with 1 GHz cortex A8 processor and built-in WiFi
  • Allen Bradley Kinetix servo drives
  • Push buttons mounted in cabinet door allow for easy operation

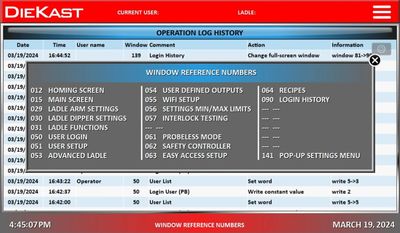

  • Full description fault codes with built in troubleshooting
  • Allen Bradley MPL/MPM servo motors
  • Banner XS26-2e programmable safety controller with detailed troubleshooting information, flexible configurations, and expandabilty
  • Set up multiple users and access levels
  • Stores 100 user-defined setup programming
  • Design allows for fast and easy programming
  • Ability to password protect setup screens
  • Advanced communications capabilities provide flexible interlocking options with other equipment including produce and consume tags


OPTIONAL FEATURES

  • Remote push button station

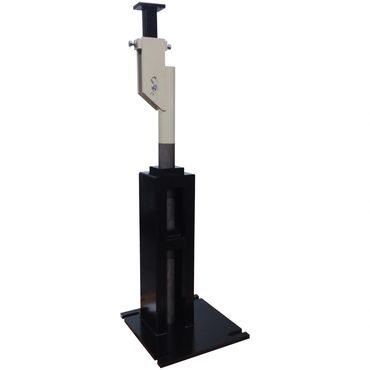

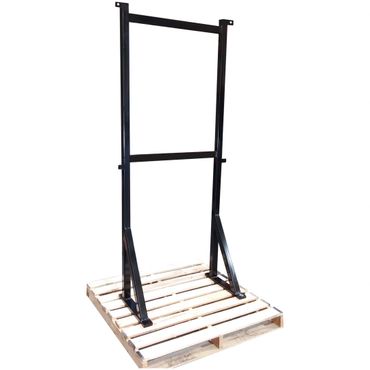

  • Controller stand

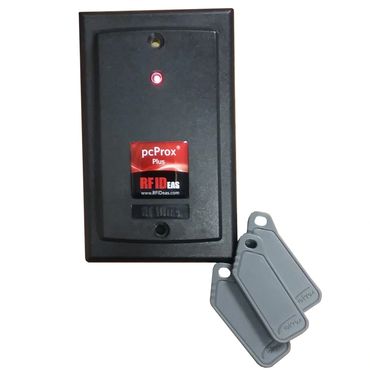

  • RFID login

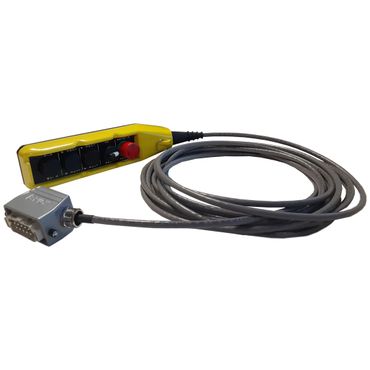

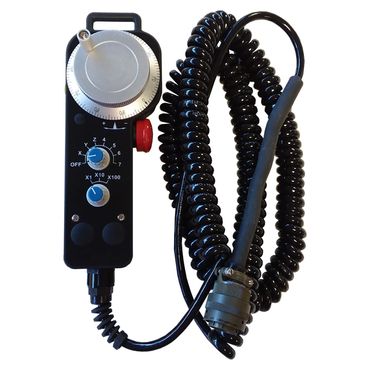

  • Handheld pendant for easy programming of sprayer positions
  • Customer specific screens to accommodate additional process requirements
  • Custom push button and selector switch layouts for manual operations
  • Quick disconnect plug for machine interlocks
  • Electrical panel air conditioner
  • Ethernet communications for off-site monitoring

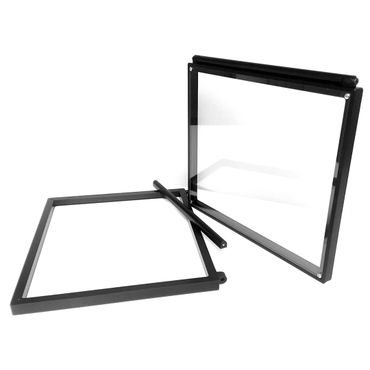

  • Screen protector for HMI
  • Multi color stacklight
  • Managed ethernet switch (replaces un-managed switch)


optional features
